Specifications
Overview
Accuracy
±1.5% or 1.5°C (2.7°F)
Detector Type
Focal plane array (FPA), uncooled microbolometer
Field of view (FOV)
50° x 38,6°
IR Resolution
80 × 60 pixels
Laser
Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Object Temperature Range
-25°C to 380°C (-13°F to 716°F)
Thermal Sensitivity/NETD
<150 mK
Environmental
Humidity (Operating and Storage)
0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range
-10°C to 45°C (14°F to 113°F)
Storage Temperature Range
-30°C to 55°C (-22°F to 131°F)
Tripod Mounting
1/4 in.-20 on handle bottom
Imaging & Optical
Color palettes
Hot Iron, Rainbow, Grayscale
Focus
Focus free
Gallery
17565
Image Frequency
9 Hz
Minimum Focus Distance
0.1 m (4 in.)
Minimum Measurement Distance
26 cm (10 in.)
Spectral Range
8–14 µm
Measurement & Analysis
Center spot
Yes
Meter Data
Camera size (L x W x H)
186 mm x 55 mm x 94 mm (7.3 in x 2.2 in x 3.7 in)
Camera weight incl battery
0.312 kg (11 oz)
Display
2.0 in. TFT LCD
Power
Battery operating time
>5 hours of continuous scanning with lasers
Battery type
Rechargeable Li ion battery
Battery voltage
3.7 V
Charging system
Battery is charged inside the camera
Charging Time
4 hours to 90%, 6 hours to 100%
Power Management
Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.
Battery charge life
30 days minimum
Shipping Information
Includes
Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation
Storage Media
Image Storage Capacity
75 000 pictures with included 8 GB Micro SD card
Memory Expansion
32 GB SD card maximum
Memory Type
Micro SD card
Saved image format
Bitmap (BMP) image with temperature and emissivity
FLIR TG165 Imaging IR Thermometer: Distance to Spot Ratio
FLIR TG165 Imaging IR Thermometer: Emissivity

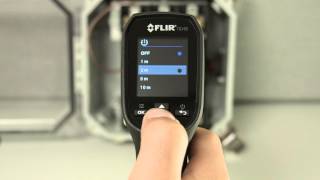

FLIR TG165 Imaging IR Thermometer: Menu System
